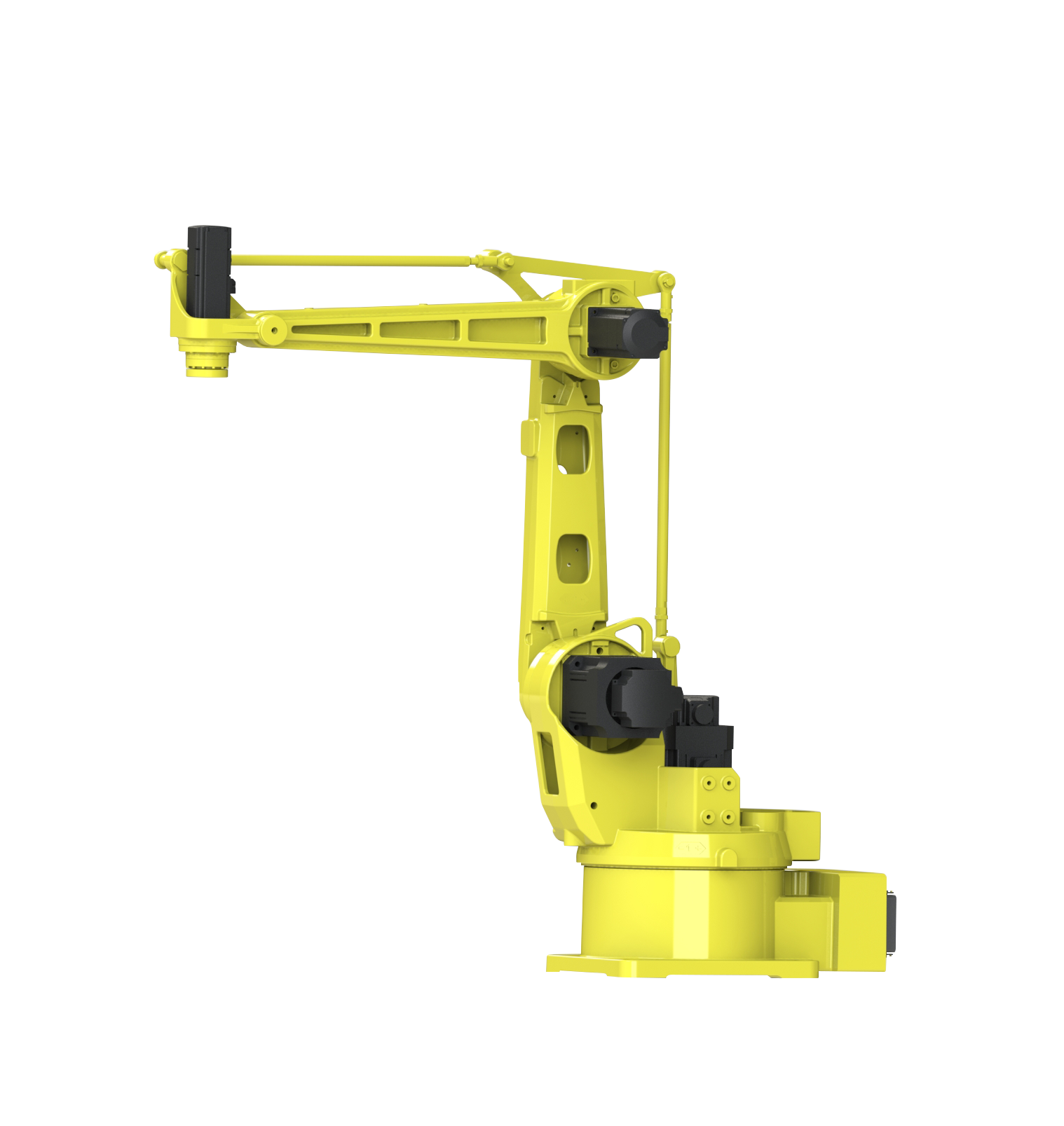

TKB4600SE
| Model | TKB4600SE | |
| Payload | 10kg | |

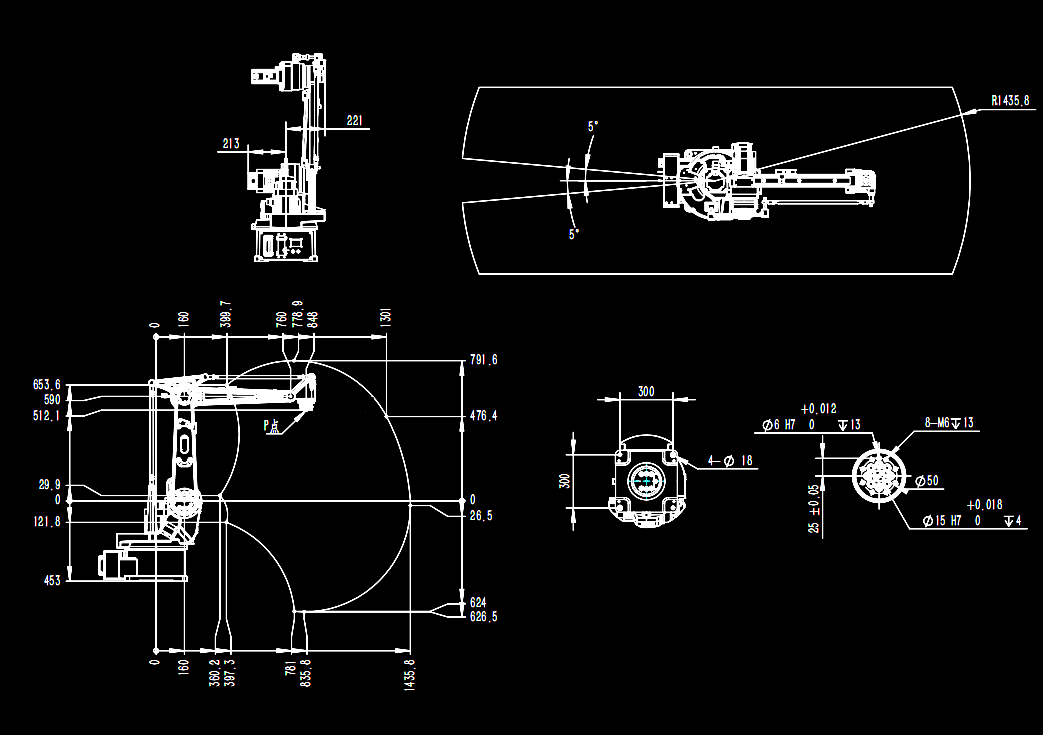

| Max Working Radius | 1435mm | |
| DOF | 4axis | |
| Body Weight | 175kg | |
| Reducer Brand | import | |
| Motor Brand | import | |
| Drive Brand | import | |
| Rated Power | 4,62kw | |
| Max Speed | J1 | 140°/s |
| J2 | 140°/s | |
| J3 | 150°/s | |
| J4 | 360°/s | |
| Max Operation Area | J1 | ±175° |
| J2 | 85°~-35° | |
| J3 | 60°~-80° | |
| J4 | ±360° | |
| Position Repeat Accuracy | ±0.08mm | |
| Working Temperature | 0~45° | |
