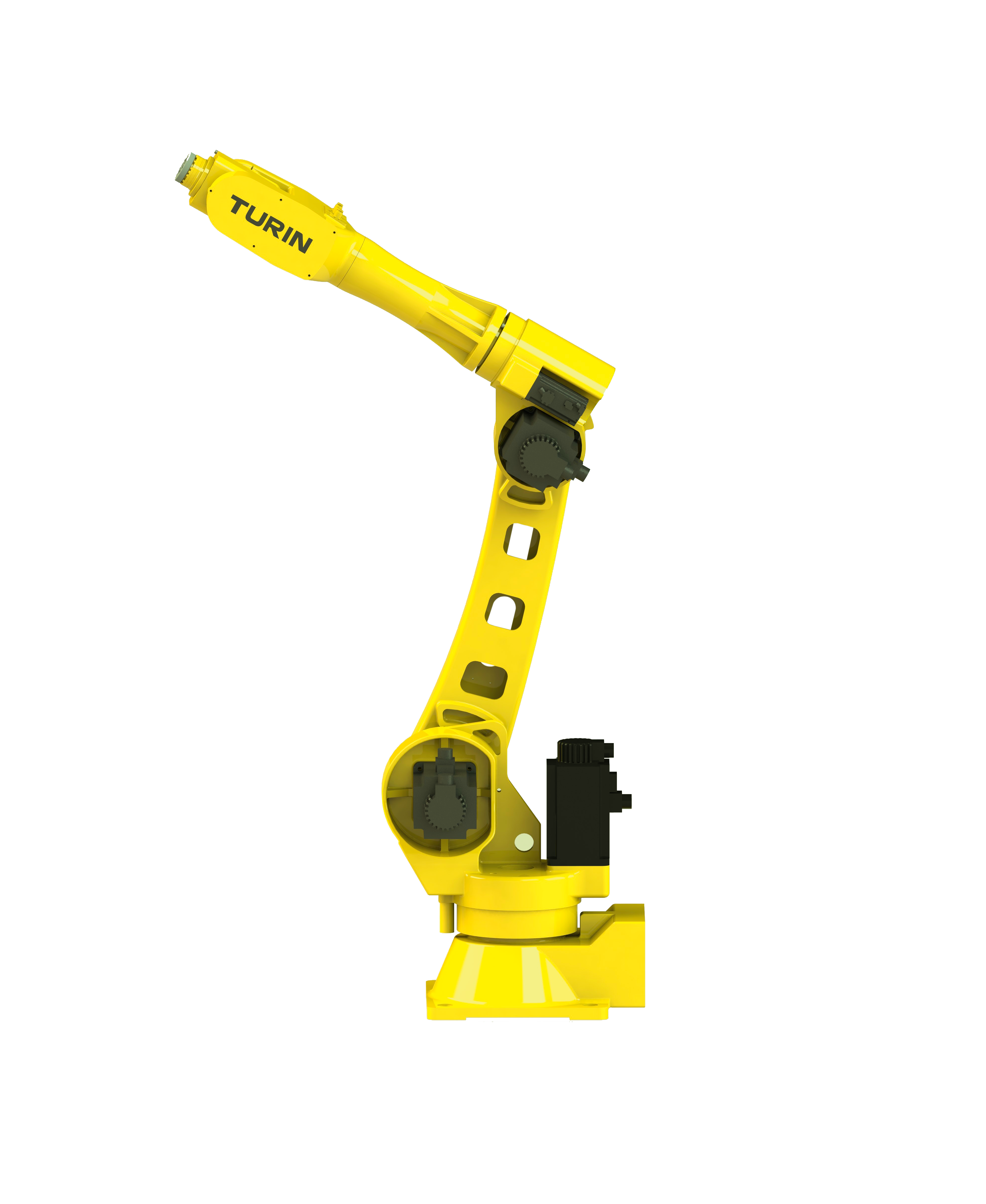

TKB2670SE
| Model | TKB2670SE | |
| Payload | 20kg | |

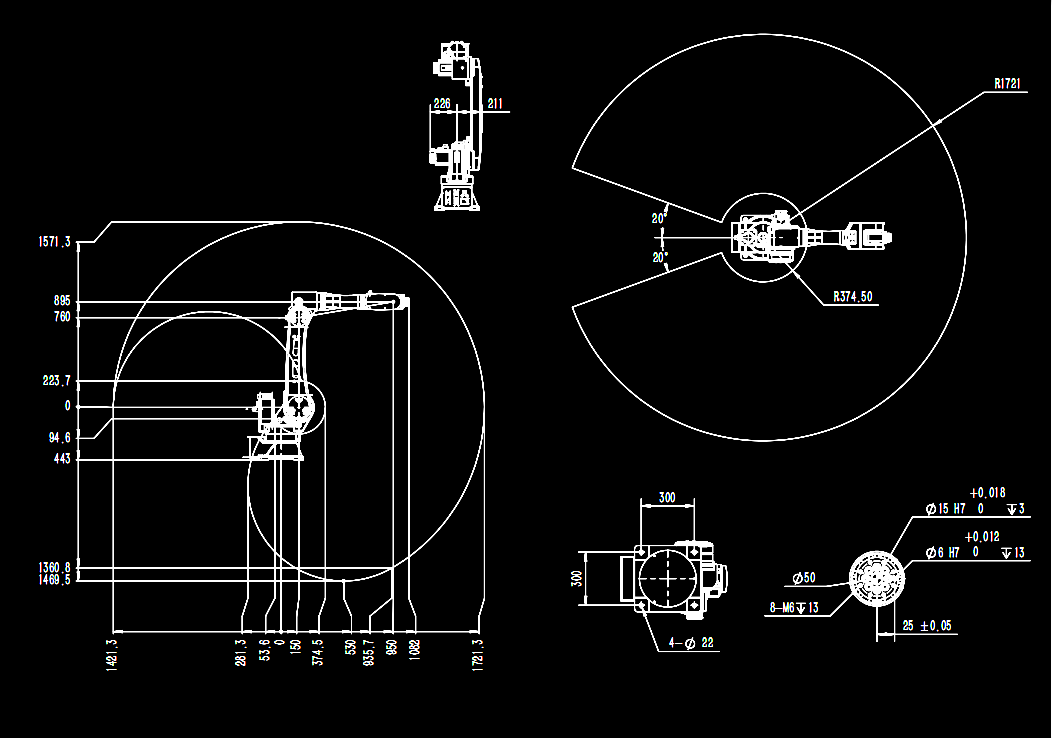

| Max Working Radius | 1721 | |
| DOF | 6axis | |
| Body Weight | 210 | |
| 减速机品牌Reducer Brand | import | |
| Motor Brand | Italy RRRobotica | |
| Drive Brand | Italy RRRobotica | |
| Rated Power | 6.4KW | |
| Max Speed | J1 | 140°/s |
| J2 | 111°/s | |
| J3 | 148°/s | |
| J4 | 234°/s | |
| J5 | 225°/s | |
| J6 | 360°/s | |
| Max Operation Area | J1 | ±160° |
| J2 | 150°~90° | |
| J3 | 80°~-100° | |
| J4 | ±150° | |
| J5 | ±110° | |
| J6 | ±300° | |
| Position Repeat Accuracy | ±0.1mm | |
| Working Temperature | 0~45° | |
| Working Temperature | 0~45° | |
