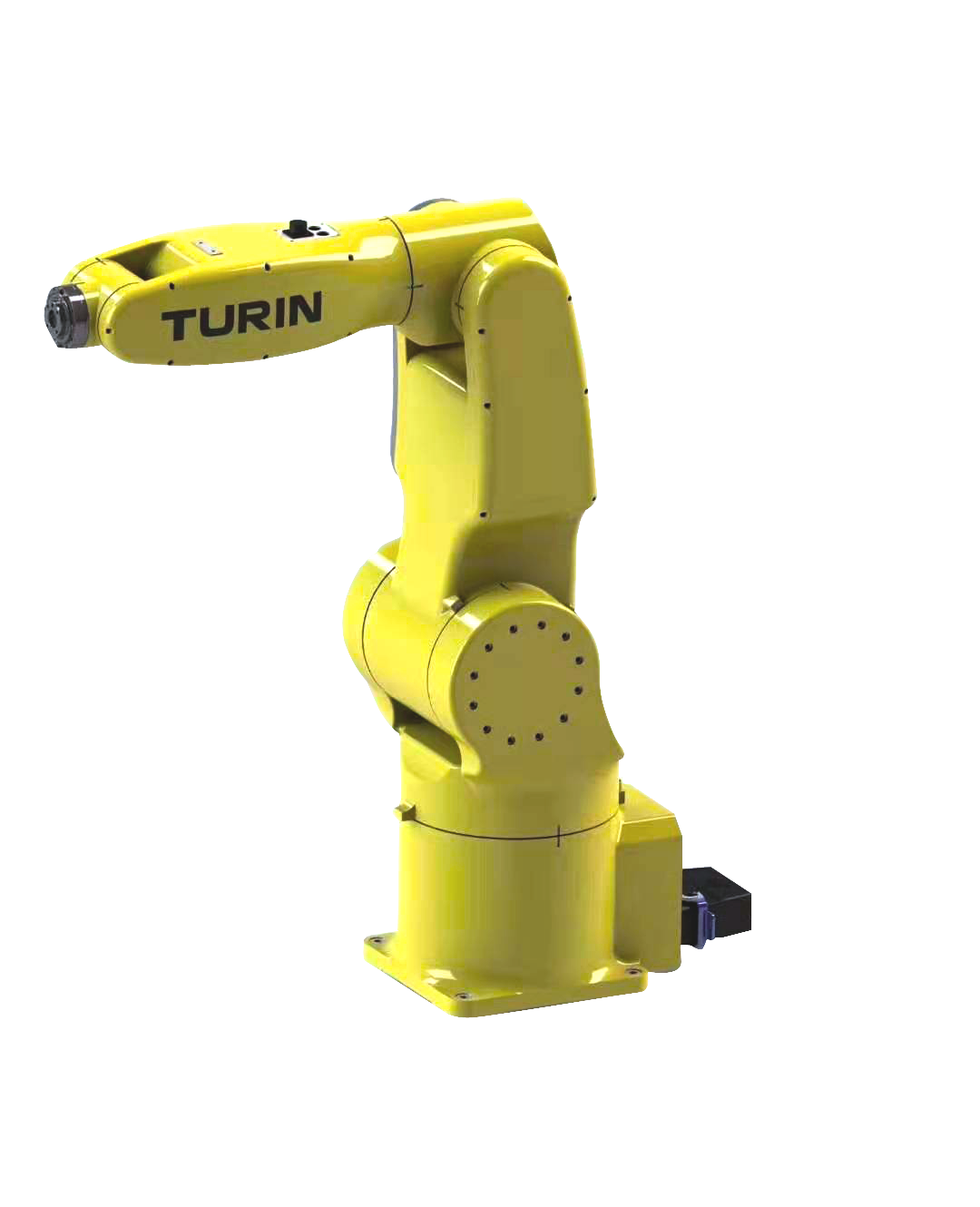

TKB070SE
| Model | TKB070SE | |
| Payload | 7kg | |

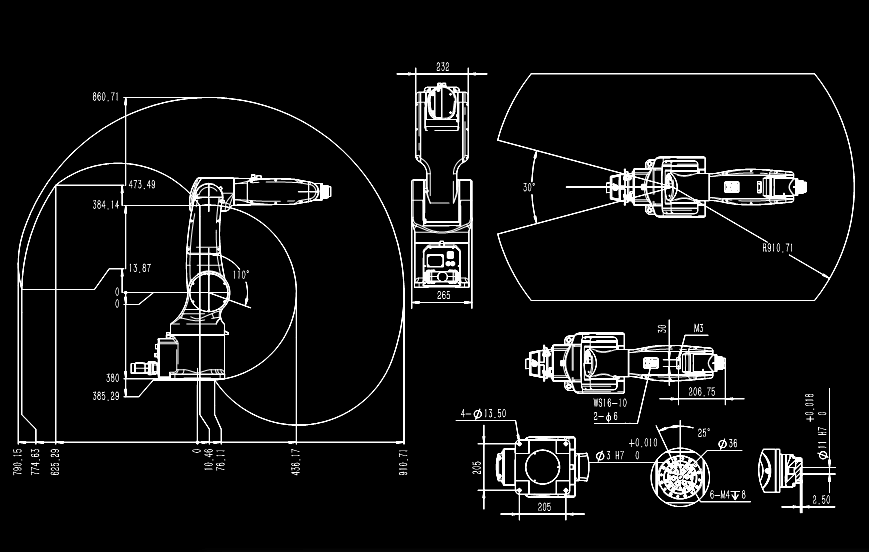

| Max Working Radius | 910mm | |
| DOF | 6axis | |
| Body Weight | 48kg | |
| Reducer Brand | import | |
| Motor Brand | Italy RRRobotica | |
| Drive Brand | Italy RRRobotica | |
| Rated Power | 2.4kw | |
| Max Speed | J1 | 300°/s |
| J2 | 300°/s | |
| J3 | 300°/s | |
| J4 | 360°/s | |
| J5 | 576°/s | |
| J6 | 576°/s | |
| Max Operation Area | J1 | ±160° |
| J2 | -72°~55° | |
| J3 | -120°~40° | |
| J4 | ±160° | |
| J5 | ±110° | |
| J6 | ±360° | |
| Position Repeat Accuracy | ±0.05mm | |
| controller | TRC3C-A06 | |
| Working Temperature | 0~45° | |
