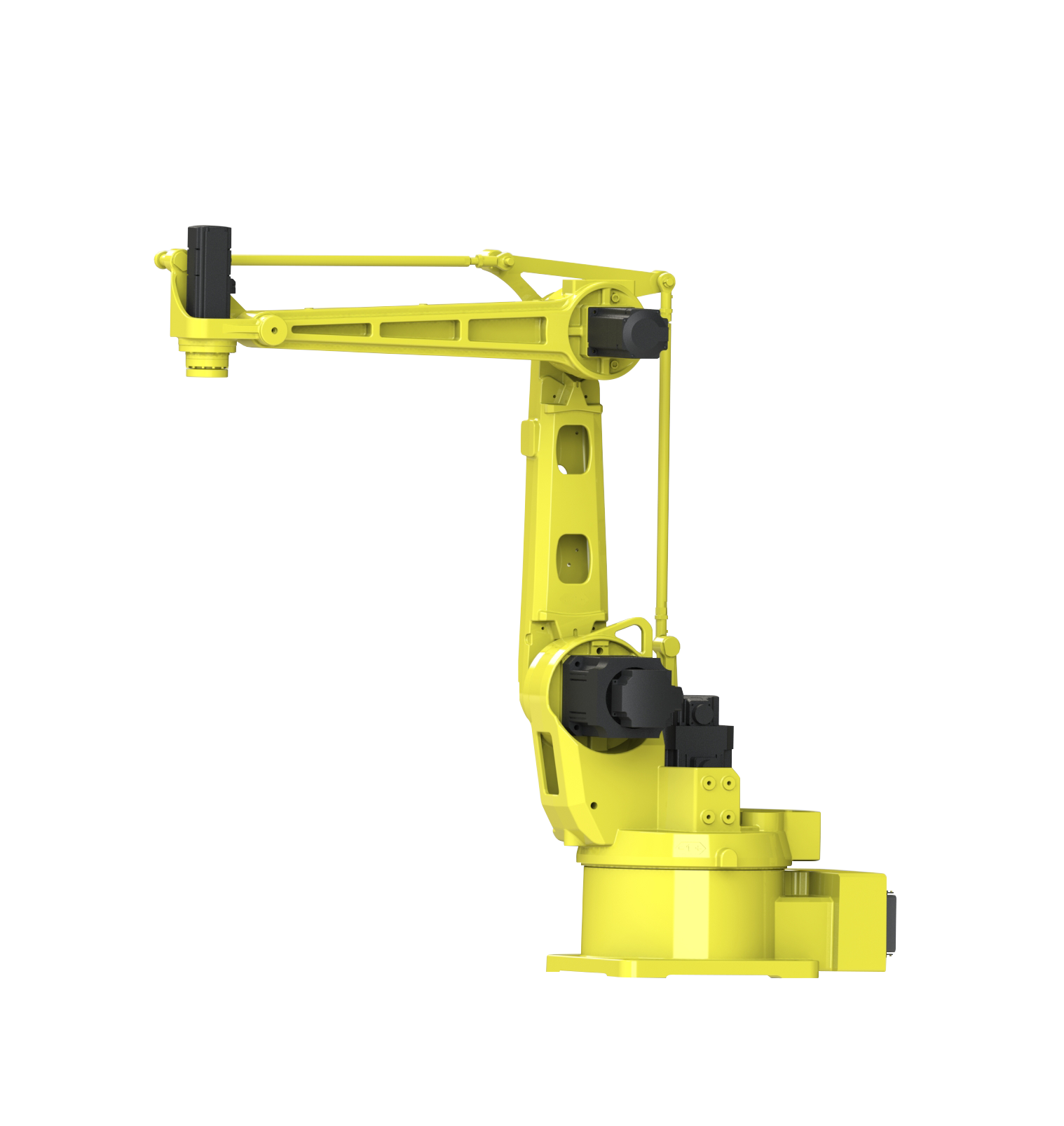

TKB4600SE
| Modelo | TKB4600SE | |
| Carga max. | 10kg | |

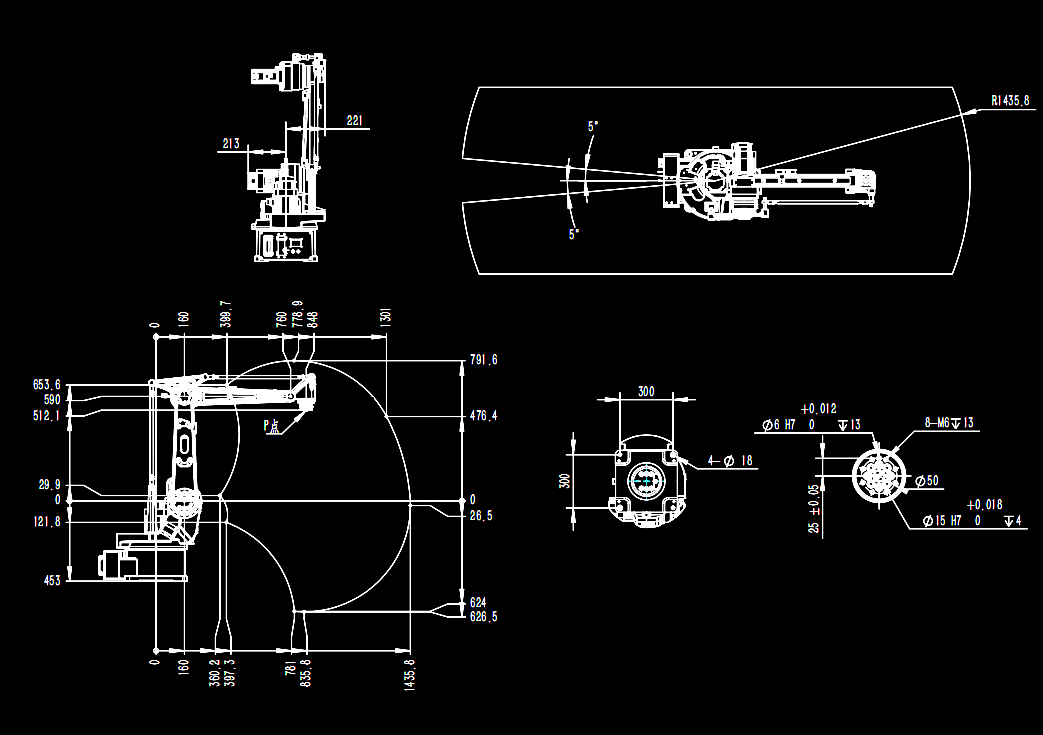

| Radio máximo | 1435mm | |
| Ejes | 4axis | |
| Peso del cuerpo | 175kg | |
| Marca Reductores | import | |
| Marca Motor | import | |
| Marca Drivers | import | |
| Potencia | 4,62kw | |
| Velocidad Max. | J1 | 140°/s |
| J2 | 140°/s | |
| J3 | 150°/s | |
| J4 | 360°/s | |
| Alcance | J1 | ±175° |
| J2 | 85°~-35° | |
| J3 | 60°~-80° | |
| J4 | ±360° | |
| Repetitividad | ±0.08mm | |
| Temperatura Trabajo | 0~45° | |
