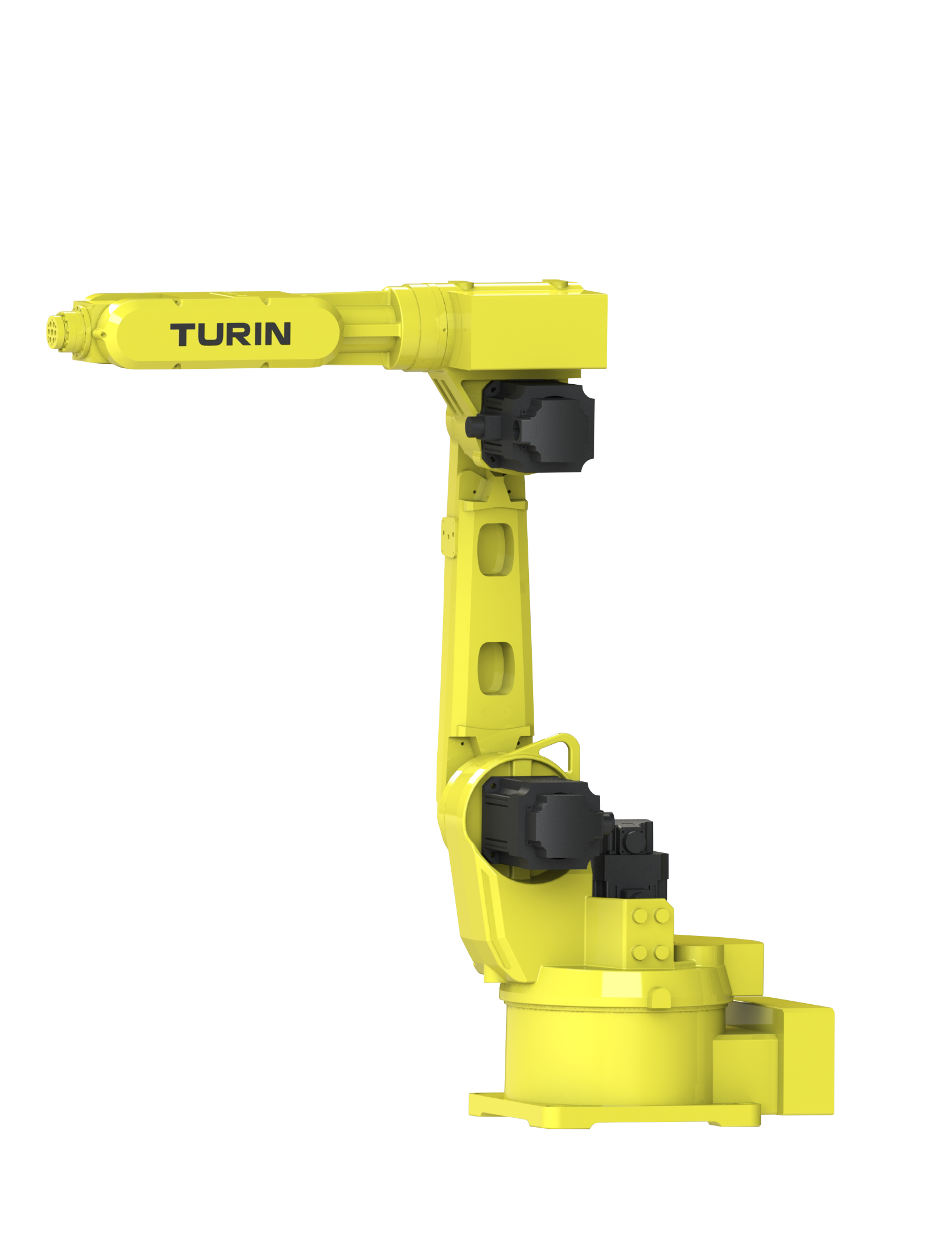

TKB1600SE
| Modelo | TKB1600SE | |
| Carga max. | 12kg | |
| Radio máximo | 1412mm | |
| Ejes | 6axis | |
| Peso del cuerpo | 160kg | |
| Marca Reductores | entrance | |
| Marca Motor | Italy RRRobotica | |
| Marca Drivers | Italy RRRobotica | |
| Potencia | 4kw | |
| Velocidad Max. | J1 | 149°/s |
| J2 | 149°/s | |
| J3 | 149°/s | |
| J4 | 148°/s | |
| J5 | 178°/s | |
| J6 | 225°/s | |
| Alcance | J1 | ±170° |
| J2 | 153°~-92° | |
| J3 | 80°~-100° | |
| J4 | ±140° | |
| J5 | ±120° | |
| J6 | ±360° | |
| Repetitividad | ±0.06mm | |
| Controlador | TRC3C-B06 | |
| Temperatura Trabajo | 0~45° | |
